• +/- 0.5% full scale accuracy
  • Calibration certificate traceable to N.I.S.T.
  • Reads clockwise or counter-clockwise
  • LCD display graphics
  • 17 hour battery life
  • Multiple torque units: N.mm, N.cm, N.m, kgf.cm, kgf.m, lbf.in, lbf.ft
  • Communications: Mini USB to USB and RS-232
  • 3 Modes of Operation: Track, Peak, and First Peak
  • Multiple Functions: Auto Reset, Auto Memory, Auto Zero, Real Time Clock, Pass/Fail Statistics, Torque Bar, Battery Indicator, Charging Status Indicator, and Transducer State
  • 500 readings store in memory
  • Data collection software Torque Link included.
  • 3/8″ female square drive
  • Not for use with impact or pulse tools
SPECIFICATIONS

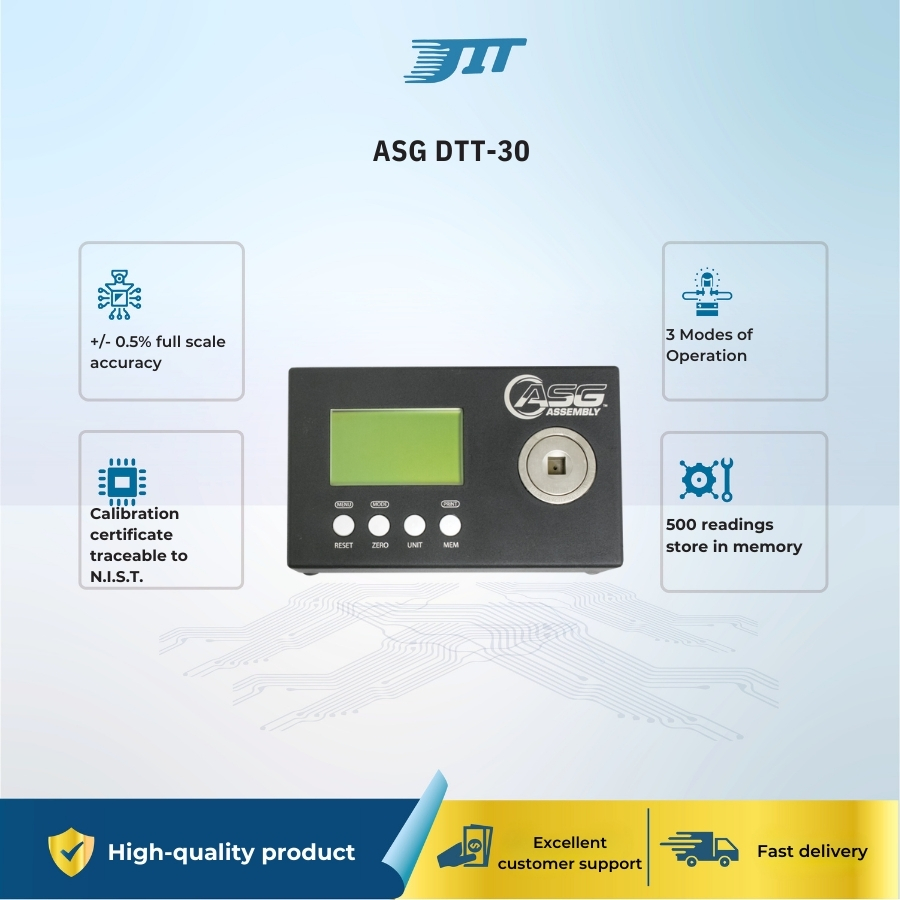

Model No. DTT-30
Torque 3.0 to 30 lbf·in 0.33 to 3.4 N·m
Drive Size 3/8″ Female Square
Manual or Robotic Application Manual
Size 7.1 x 4.4 x 2.2 in 181 x 112 x 56 mm
Weight 5 lb 2.3 kg
Battery 1.2V NiMH cell x 6
Charging Time 2.3 hrs
Lifetime per Charge 17 to 40 hrs
Real Time or Downloadable Output? Downloadable Real Time
Testing Tools or Installed Fasteners? Tools
Can be Used with Impact Tools? No
ESD Safe No
Warranty 1 year
