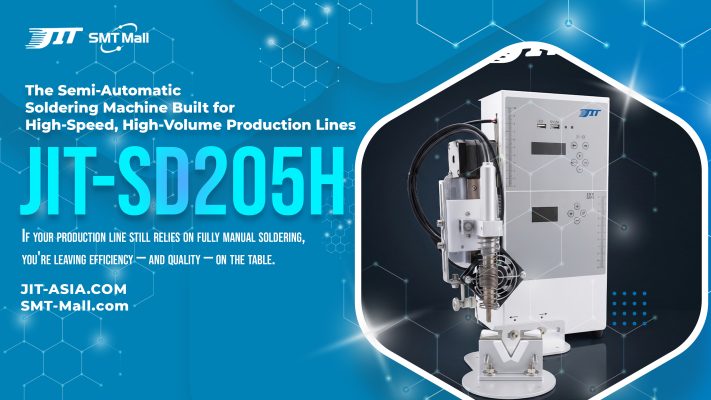

JIT-SD205H Semi-Automatic Soldering Machine

The Semi-Automatic Soldering Machine Built for High-Speed, High-Volume Production Lines

If your production line still relies on fully manual soldering, you’re leaving efficiency — and quality — on the table.

The JIT-SD205H Consolidate Multifunctional Soldering Machine is a 24V high-speed semi-automatic soldering solution engineered for manufacturers who demand precision, consistency, and uninterrupted throughput. Backed by a dedicated 160W high-frequency CNC soldering station, this machine automates the most critical and error-prone steps of the soldering cycle — tin feed, stroke, and timing — while keeping the operator in control of product placement and cycle trigger.

What Is the JIT-SD205H?

The JIT-SD205H is an industrial-grade semi-automatic soldering machine designed for multi-wire welding across a wide range of electronic components. The operator positions the workpiece in the fixture and triggers each cycle via foot pedal. From that point, the machine takes over: it automatically lowers the soldering iron head, feeds the exact programmed length of solder wire, holds for the set dwell time, then retracts — ready for the next cycle.

This division of labor — human for positioning, machine for execution — eliminates the inconsistency of fully manual soldering while maintaining the flexibility needed for high-mix production lines. With support for 24-hour uninterrupted operation, the JIT-SD205H fits naturally into both single-shift and round-the-clock factory environments.

Who Is This Machine For?

The JIT-SD205H is purpose-built for electronics manufacturers, EMS contractors, and production engineers working in:

• Electronics & PCB assembly — soldering terminals, resistors, diodes, transistors, and circuit boards
• LED lighting production — aluminium-based lamp boards and LED modules
• Wiring harness manufacturing — multi-wire connectors, sensors, and coil windings
• Consumer electronics — USB connectors, audio heads, microphone assemblies, DC heads
• Automotive & industrial components — motors, potentiometers, aviation plugs, waterproof connectors

If your operators are performing hundreds of solder joints per shift, a semi-automatic machine like the JIT-SD205H delivers a rapid ROI compared to fully manual dispensers — with significantly less operator fatigue and fewer defects.

6 Reasons Engineers Choose the JIT-SD205H

1. Consistent Tin Feed from First to Last — Stepper Motor Driven

Unlike flow-reduction motors that lose accuracy as the solder reel depletes, the JIT-SD205H uses a 376D stepper motor tin-feed system. Every foot-pedal trigger delivers the exact same wire length — whether you’re on the outer ring or the inner core of the reel. No recalibration mid-run. No solder starvation late in the shift.

2. 160W High-Frequency Power with Only 3W Standby Draw

Most soldering stations on the market idle at 9W+ standby. The JIT-SD205H’s integrated station idles at just 3W, with whole-machine standby at 13W — a meaningful saving across 24-hour factory cycles. When active, the 160W high-frequency output ensures rapid thermal recovery between joints, even on thermally demanding pads.

3. Dual Tin Dispensing Modes — Process Flexibility Built In

Some joints need pre-tinning; others need simultaneous feed during contact. The JIT-SD205H supports both:

• Mode 1: Press foot pedal to dispense tin first, then solder
• Mode 2: Dispense tin during soldering contact

Switch between modes without tooling changes — just a controller setting.

4. Fully Programmable — 16 Parameters, 0.1mm Precision

The 4-position green digital display gives operators full control over every variable in the soldering cycle:

Count tracking runs from 1 to 9,999 — reset with a single key combination for batch changeovers.

5. ESD-Safe Design for Precision Component Welding

Precision electronic components are sensitive to electrostatic discharge. The JIT-SD205H includes an equipotential grounding hole to maintain ESD-safe conditions throughout the welding process — essential for sensor assemblies, microcontroller boards, and fine-pitch connectors.

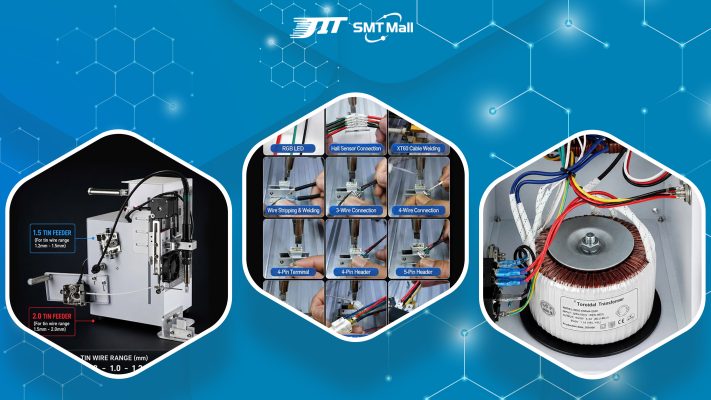

6. Three Solder Nozzle Positions — Adapts to Your Fixture

Not every fixture allows the same approach angle. The JIT-SD205H supports rear delivery, left delivery, and fixed bottom nozzle configurations, making it compatible with a wide range of jig designs without machine repositioning. Dual-head configuration is also available for long-distance or simultaneous multi-point soldering.

Technical Specifications at a Glance

Solder Wire & Nozzle Selection Guide

Matching the right nozzle to your solder wire diameter is critical for jam-free operation:

What’s Included in the Box

The JIT-SD205H ships as a complete, production-ready kit:

1. Machine shell/chassis
2. Travel motor (24V)
3. Tin discharge motor (24V)
4. EUC main controller (24V ±10%)
5. Small turbine blower (24V)
6. Fixed base
7. 24V/2A power supply
8. 205H/160W high-frequency host
9. 205H/160W high-frequency plastic handle
10. Accessory box
11. High-brightness USB work light (included as gift)

Warranty

The JIT-SD205H comes with a 1-year warranty covering the two stepper motors, ECU main controller, and welding station. Consumable items — including welding heads, heating handles, fans, belts, tin discharge hoses, foot pedals, and USB lights — are operator-maintained components not covered under the standard warranty.

The Bottom Line

Fully manual soldering scales with headcount. Semi-automatic soldering scales with demand.

The JIT-SD205H gives production managers a platform where operators focus on what humans do best — product positioning and quality judgment — while the machine handles what it does best: precise, repeatable solder execution at speed.

For manufacturers ready to move from fully manual to semi-automatic soldering, the JIT-SD205H is a proven, low-threshold entry point into high-consistency production — without the cost or complexity of a fully automated line.

Ready to see the JIT-SD205H in action?

Download the product manual  |  Request a quotation  |  Chat with our team
