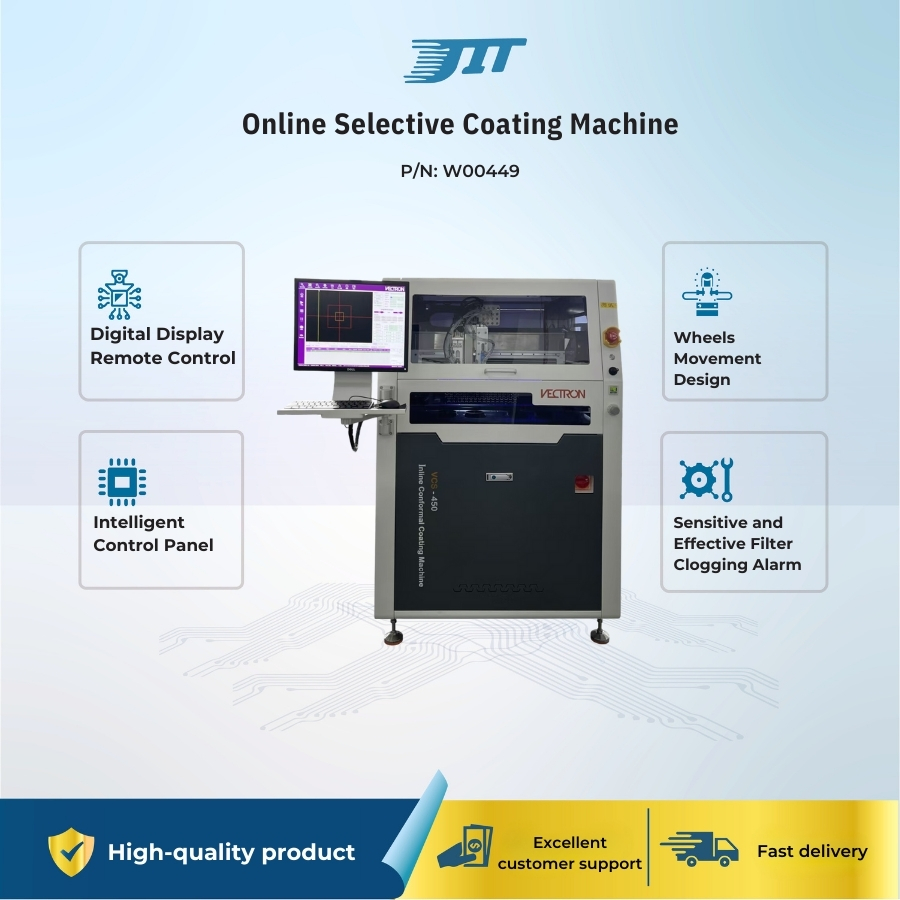

Online Selective Coating Machine : Inline High-Accuracy PCB Conformal Coating

The Online Selective Coating Machine is a system for applying protective (conformal) coatings along pre-programmed paths, targeting only the specific areas on a PCB or component that need protection, rather than coating the entire surface. It operates in fully automatic inline mode, integrated with the SMT production line, increasing automation, delivering uniform coating quality, and reducing reliance on manual operation. Its standout feature is high-precision coating control along linear axes (X, Y, Z) using pre-configured software programming

Categories: ,

Product Features:

1. Applicable to complex product types, variable component heights, high-speed, and high-precision
spraying requirements.

2. Multi-directional and multi-angle spraying process to achieve all-round spraying on the sides and circumferential sides of components.

3. Online selective coating accurately realizes the spraying requirements of the selected area.

4. Powerful process control capabilities ensure high quality and consistency of coating.

5. Products correspond to acrylic, polyurethane, silicone, and UV anti-paint

Parameters:

Products correspond to acrylic, polyurethane, silicone, and UV anti-paint

Overall dimensions: L1000*W1370*H1350mm (excluding foot cup lighthouse)

Equipment weight is about 500kg Equipment power supply AC220V 50/60Hz Power 2.0KW

Provide air source above 0.6Mpa

Exhaust volume 15m3/min

Working direction left right (standard)

Working height 900±20mm

Track width adjustment software

Conveying Automatic width adjustment

Track inlet method 25# stainless steel chain exhaust and outlet equipped with wind curtain

Track wind curtain equipped with outlet

Double valve structure before exhaust discharge, L valve 360° rotation + 35° tilt deflection U axis equipped

Moving speed 1-800mm/s

Repeatability ±0.02mm

Control method Industrial computer + servo control system

Operation interface VETCRON Control Software
