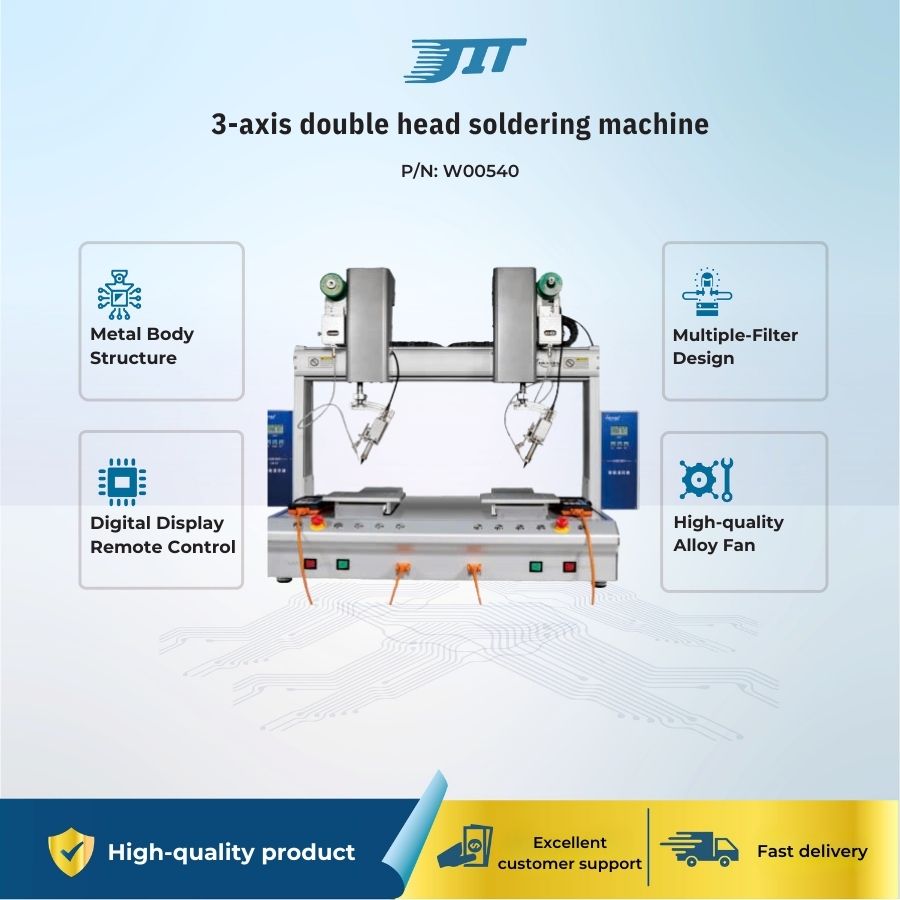

3-Axis Double Head Soldering System – Stable, Precise, Production-Ready

The 3-axis dual-head automatic soldering machine is a high-efficiency solution for PCB and electronic component production. Its dual-head design enables simultaneous or sequential soldering, reducing cycle time and increasing throughput compared to manual work. The programmed PLC/CNC control system and X-Y-Z motion structure ensure precise repeatability, stable temperature control, and consistently uniform solder joints that meet industrial standards. The machine includes—or can be equipped with—an automatic tip-cleaning module, minimizing downtime and reducing errors caused by dirty soldering tips.

Categories: Machines, Soldering machines

Description
Reviews (0)

Parameters:

Thông số	Giá trị / Mô tả
Working area	W290 × L290 mm × 2
Machine dimensions	W650 × D650 × H900 mm
Maximum speed	X/Y: 0.1–800 mm/s
Z:	0.1–500 mm/s
R:	0.1–600°/s
Repeatability	X/Y/Z: ±0.02 mm
R axis:	±0.2°
Load-bearing range	8 kg / mỗi bàn làm việc
Input voltage	220V
Input air pressure	4–8 kg/cm²
Teaching method	Lập trình bằng bộ teach pendant
Program storage	Lưu 1000 bộ chương trình; mỗi bộ tối đa 8000 bước
Applicable solder wire	Φ0.3–1.2 mm
(Tính năng cắt chì chỉ hỗ trợ Φ0.8–1.2 mm)
Heating module	Công suất mỏ hàn đơn: 150–200 W
Temperature range	±2°C (no load)
Temperature compensation	±50°C

Features:

1. One person operates multiple machines – Reduce manpower, increase consistency

One of the machine’s biggest advantages is the ability for one operator to manage multiple units. This significantly reduces labor costs while eliminating the inconsistencies of manual soldering. Full automation ensures stable output, high repeatability, and uniform solder joints—ideal for medium to high-volume production lines.

2. High power 150W–200W German silver series heating system

The 150W–200W German Silver Series heating system provides rapid heating, stable temperature control, and precise thermal transfer at every solder point. Combined with a professional soldering iron tip positioning device, the system ensures accurate contact, strong bonding, smooth surface finish, and long-lasting solder joints. This is critical for preventing defects like cold soldering, poor wetting, or oxidation.

3. Special soldering control system – Fast, flexible, intelligent

The machine features a specialized soldering control system with practical advanced functions:
• Graphic display for visualizing solder paths
• Array programming for boards with multiple solder points
• One-step global solder-point modification
• Midway suspension and seamless resume
This workflow makes programming faster, more intuitive, and highly efficient.

4. Imported motion components – Up to 800mm/s and ±0.02mm repeat accuracy

Equipped with imported motion components, the robot achieves movement speeds up to 800mm/s with R-axis rotation up to 600°/s. Repeatability of ±0.02mm ensures long-term stability even under continuous 24/7 operation. This level of precision is essential for high-density PCBs and fine-pitch components where positional error must remain minimal.

5. Multiple IO interfaces – Ready for automation and expansion

The system includes multiple data interface IO ports, allowing integration with jigs, sensors, conveyors, feeders, and other peripheral devices. It easily fits into an automated in-line soldering system, supporting smart manufacturing and flexible production scaling.

6. Visual positioning system compatibility – Automatic coordinate compensation

The machine can be paired with a visual positioning system to automatically correct coordinate deviations caused by PCB deformation, jig tolerance, or environmental variations. This auto-compensation greatly improves soldering accuracy and significantly increases pass yield.

7. Large program storage – Up to 1000 sets

The controller stores up to 1000 program sets, with each set containing up to 8000 instructions. This allows fast product switching and flexible handling of multiple PCB models without repeated setup work.

8. Wide solder wire compatibility

The robot supports solder wire sizes from Φ0.3–1.2mm, making it suitable for a variety of components. The tin-cutting mechanism is optimized for Φ0.8–1.2mm, ensuring stable feeding and clean solder joints.
