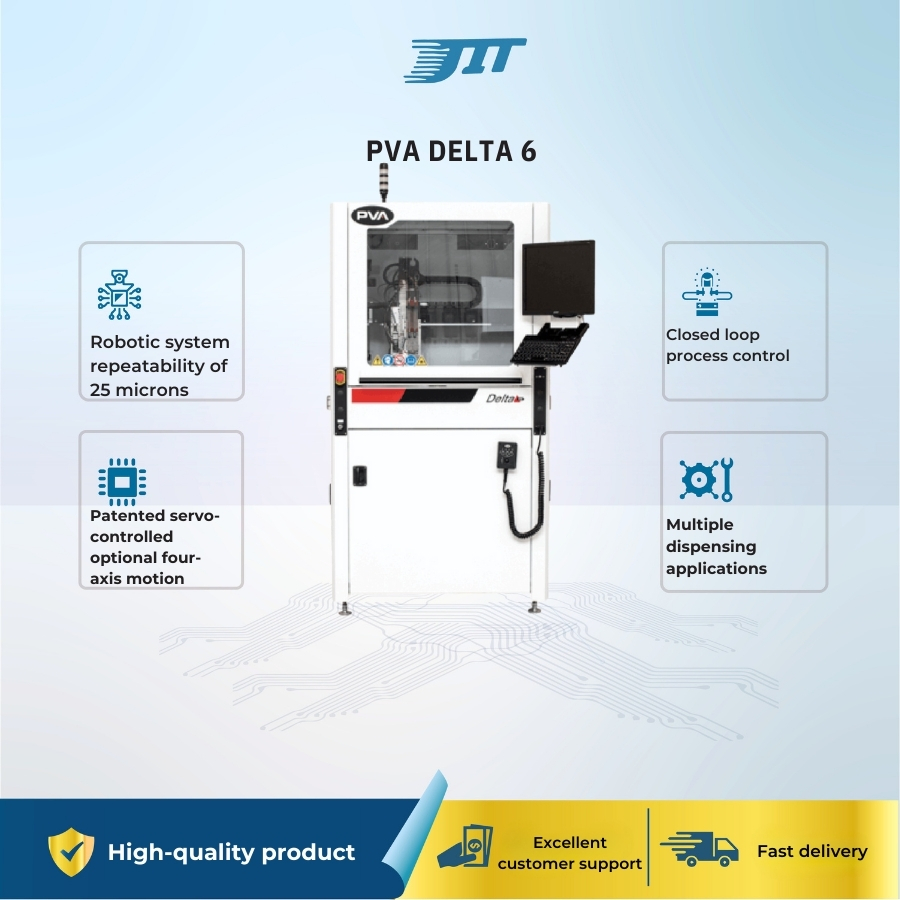

PVA DELTA 6

Description

The Delta 6 has many options and integrated features including:

• Robotic system repeatability of 25 microns
• Patented servo-controlled optional four-axis motion featuring valve tilt and rotate

• Closed loop process control throughout gantry system
• Multiple dispensing applications or materials in one cell
• Onboard PC for unlimited program storage
• Exclusive PathMaster® programming environment

SYSTEM SPECIFICATIONS Gantry System Design Closed loop brushless DC servo motors with optical encoders and ball screw slides  on all axes Work Area 1 Valve / Tool: 521 mm x 485 mm x 100 mm (20.51” x 19.09” x 3.94”) XYZ Repeatability ±25 microns (±0.001”)  Resolution 5 microns (0.0002”) Maximum Acceleration 1g Footprint 847 mm x 1136.9 mm x 1606 mm (33.35” x 44.76” x 63.23”) Programming Software PathMaster® software with offline image import and programming capability
