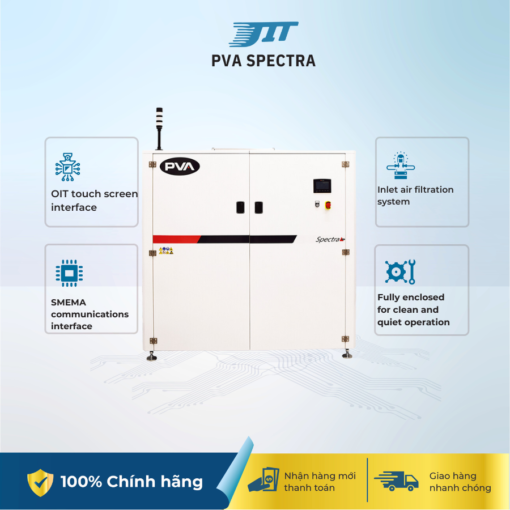

🔎 Overview: What is Spectra?
-
Spectra is a UV curing system developed by PVA — used to cure, polymerize, and rapidly dry adhesives, coatings, protective layers, conformal coatings, or dispensed materials after spraying or dispensing.
-
The system uses Heraeus Fusion® UV lamps, well-known in the industry for reliability and high performance in fast, uniform curing of coatings and adhesives.
-
Spectra is designed as an inline curing oven, meaning that after the coating/dispensing step, PCBs or components move directly through Spectra for final curing — ideal for fully automated production lines.
📊 Technical Specifications & Key Features
| Parameter / Attribute | Value / Description |
|---|---|
| Machine Type | UV Curing Oven / UV Light Curing System |
| UV Lamps | Fusion® UV lamps (Heraeus), 300 watt/in mercury bulbs, approx. 8,000-hour lifespan |
| Selectable UV Beam Widths | ~167.64 mm, 335.28 mm, 502.92 mm (depending on model version) |
| Working Width (substrate width) | 50 mm – 500 mm (≈ 2 in – 19.7 in) |
| Maximum Component / Board Height | Supports boards/modules within the allowable lamp-height and product-height specifications |
| Conveyor System | SMEMA edge-carry chain conveyor; dual-zone conveyor with programmable curing and transfer speeds |
| Conveyor Speed | ~0.305 m/min – 5.8 m/min (≈ 1 ft/min – 19 ft/min) |
| Component Clearance (top & bottom) | Up to ~4 inches clearance above and below for taller assemblies |
| Control Interface | OIT touch-screen interface + SMEMA communication interface for line integration |
| Machine Design | Fully enclosed frame for clean, quiet, dust-controlled operation suitable for SMT/PCB production environments |
✅ Advantages
The PVA Spectra UV curing system delivers fast, consistent, and highly controlled curing performance. It offers significantly higher throughput and more uniform results compared to manual curing or hot-air drying.
It integrates smoothly into modern automated production lines and supports a wide range of board sizes, coatings, and adhesives—making it flexible for many electronic manufacturing environments.
The system provides excellent stability, thanks to its UV lamp technology, SMEMA-compatible conveyor, and intuitive interface, helping reduce defects and improve product reliability.
Its enclosed design ensures clean, quiet operation, ideal for SMT and PCB production facilities, while also simplifying maintenance.
⚠️ Limitations to Consider
For very low-volume production or minimal curing needs, Spectra may be over-specified and not cost-efficient.
Because it uses UV technology, it requires UV-curable materials—coatings or adhesives that do not cure under UV will not benefit from this system.
Manufacturers must ensure SMEMA conveyor compatibility and line setup, which may require additional investment if the factory is not already standardized.
For boards with unusually tall components or special materials, clearance and conveyor orientation must be configured correctly to avoid collisions or shading during curing.
🛠️ Common Applications
The PVA Spectra is optimized for electronic manufacturing processes that require fast, uniform, and reliable UV curing after dispensing or coating. Key applications include:
• Conformal coating curing for PCB protection against moisture, dust, and corrosion.
• Adhesive and coating curing after dispensing on PCB assemblies or electronic modules.
• Masking material curing when using gel-based or fluid masking compounds.
• Inline automated production, especially in SMT, PCB, LED modules, and industrial electronics where high throughput is required.
• High-reliability electronics, where consistent coating or adhesive performance is critical.
🎯 Conclusion — When to Choose PVA Spectra
Choose PVA Spectra if you operate SMT or PCB production lines that require consistent curing of coatings, adhesives, protective layers, masking gels, or encapsulation materials.
It is ideal for factories that need speed, stability, uniformity, and automation to maintain high product quality and reduce defects.
It performs best with UV-curable materials and inline production setups requiring strong process control.
Reconsider if production volume is small or materials are not UV-compatible.
