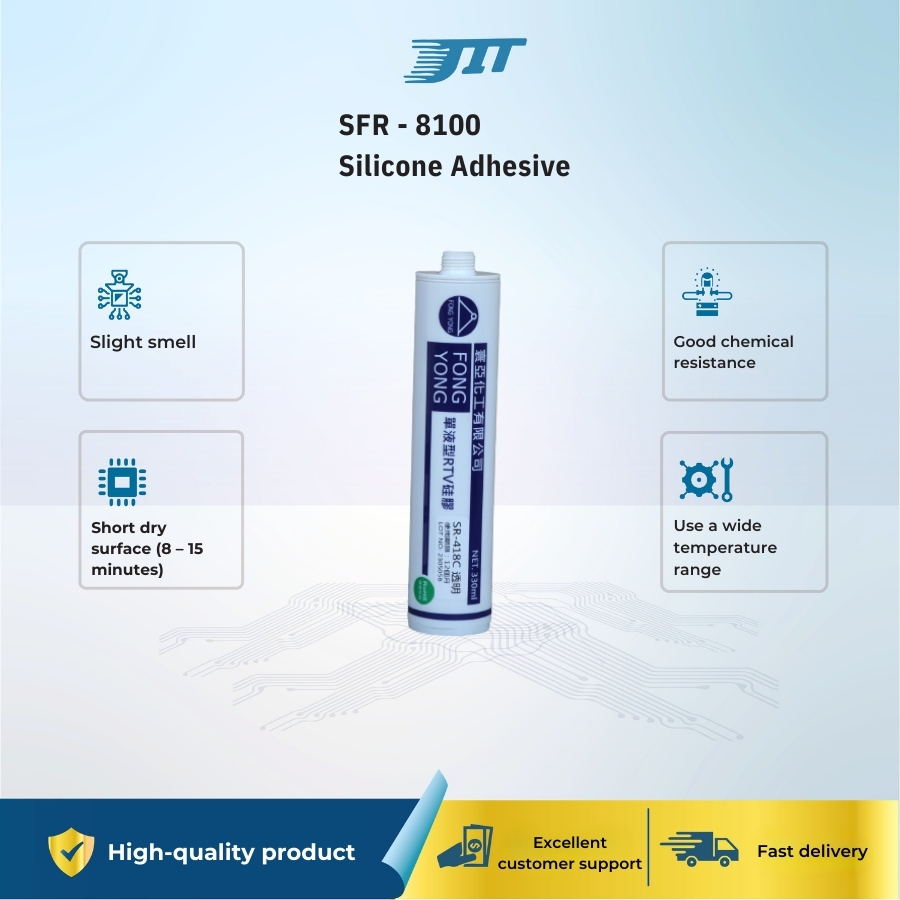

SFR – 8100

SFR-8100 is a non-flowing, Room-Temperature-Vulcanizing, one-component, flame-resistant, adhesive sealant that is commonly used for electrical insulation, sealing, or sealing and coating in vehicles, ships, aircraft, glass, ceramics, and electronic equipment. It does not produce corrosive by-products and does not corrode metals. After curing, it can be adhered to most materials. Has excellent resistance to cold and heat and weather resistance, and excellent electrical properties. Contains no hazardous substances and meets the requirements of the Green Rohs.

Categories: ,

Features:

  1. Neutral, no corrosive byproducts.
  2. The one-component is easy to operate without stirring or preheating.
  3. Short dry surface (5 – 10 minutes).
  4. Can be adhered to most materials.
  5. Use a wide temperature range (-40 oC ~ 200 oC).
  6. UL94 V0 flame resistant certification (E120665).

Characteristics:

Appearance/Color White, gray
Specific density (25℃) 1.50-1.60
Viscosity (cps) Paste
Tack-free time (25℃,min) 5–10min
Cure time (25℃,hrs) 24
Linear shrinkage (%) 5
Hardness (Shore A) 70
Shear Strength (Mpa) 1.3
Tensile strength (Mpa) 2.0
Tensile strength (%) 130
Dielectric strength (KV/mm) 23
Volume resistivity (ohm-cm) 3.1× 10^13
Dielectric constant (60 HZ) 3.2
Dispersion factor (60 HZ) 3.5 × 10^-2
Linear thermal expansion (cm/cm oC, 5 oC -150 oC) 1.5 x 10^-4
Thermal conductivity (W/m.k) 0.9 ± 0.1

Storage and Shelf Life:

  1. Store at 25℃ or lower and dry place.
  2. Shelf life is about 9 months.

Packaging: 330 ml, 2.6L
